Thermoflon Spezial/AK
6236/AK

Thermoflon Spezial/AK <br/>6236/AK

Thermoflon Spezial/AK
6236/AK

Features

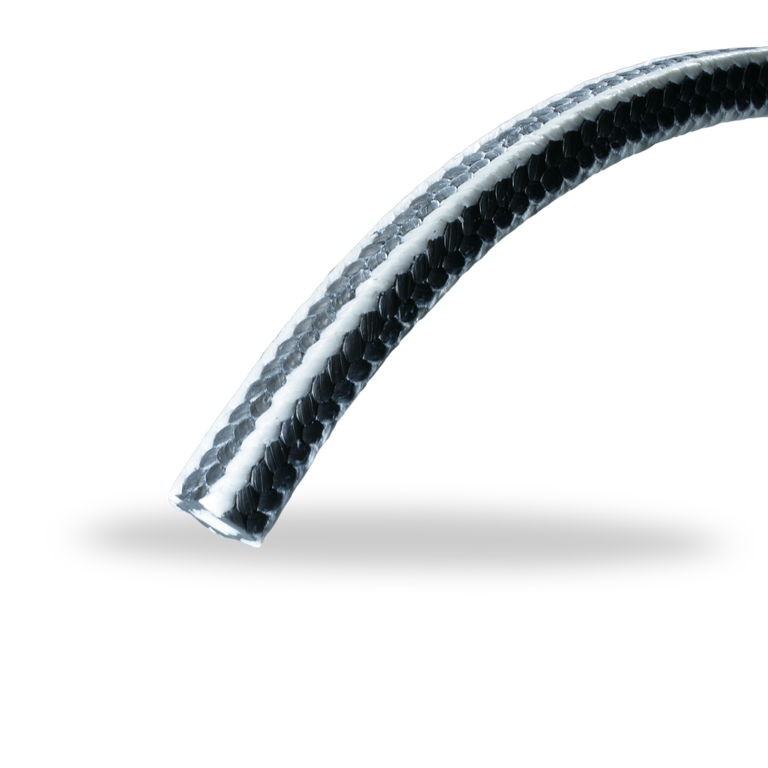

Thermoflon Spezial 6236/AK is a exclusively diagonal braided packing, made of PTFE/graphite-yarn with lubricant and reinforced corners with a very wear-resistant PTFE-fiber. This packing is braided in the special AK-profile. Therefore Thermoflon Spezial 6236/AK is a special packing for the pulp and paper industry!

Advantages

  • Very gentle to the shaft
  • No gap extrusion
  • Outstanding sliding performances
  • Suitable for applications with large gaps between shaft and housing

Operating range

Pressure:
p(centrifugal pumps) = 25 bar,
p(valves) = 250 bar

Sliding velocity:
vg(centrifugal pumps) = 20 m/s,
vg(valves) = 2 m/s

Temperature: t = -40 °C ... +280 °C
Chemical resistance: pH = 0 ... 14

Universal chemical resistance, except strongly oxidising media like oleum, fuming, nitric acid, gaseous fluorine and molten alkali metals.

Notes

The packing can be stored safely in its original packaging for a minimum of 3 years in dry, cool, conditions. The maximum stated operating temperature and pressure cannot be used simultaneously.

Forms of supply

Content of boxes
up to 6 mm: 1 kg
up to 10 mm: 2 kg
up to 13 mm: 3 kg
from 14 mm: 5 kg
from 25 mm: 10 kg
Supplied by the metre, pre-cuts, die-pressed rings with straight or slanted cut

Similar products

Araflon 6426

Araflon 6426 is a packing made from high quality, smooth, synthetic and partly pre-impregnated continuous aramid fibers (Kevlar) with multiple applications of PTFE impregnating agent and lubricant additive. The aramid fibers are diagonally braided. This is a high quality and high strength packing. It is used, in particular, in the chemical, petrochemical, waste water and paper industries.

Buraflex HT 2000/HT

Buraflex HT 2000/HT is a packing made from expanded graphite combined with Nomex yarn corners. The Buraflex HT is a special packing for applications with high temperatures and peripheral speeds.

Buraflon 5846

Buraflon 5846 is a diagonally braided, silicone oil-free ramie fiber packing with a light-colored special PTFE impregnating agent based on paraffin wax and oil. This special combination will prevent product contamination. The packing is preferred for use in marine applications, the brewing and drinks industry and the pharmaceutical industry. It is a flexible, maintenance-friendly and easy to adjust packing that is gentle on shaft surfaces.
