BuraTAL T4 9650/T4
BuraTAL T4 9650/T4
BuraTAL T4 9650/T4
Features

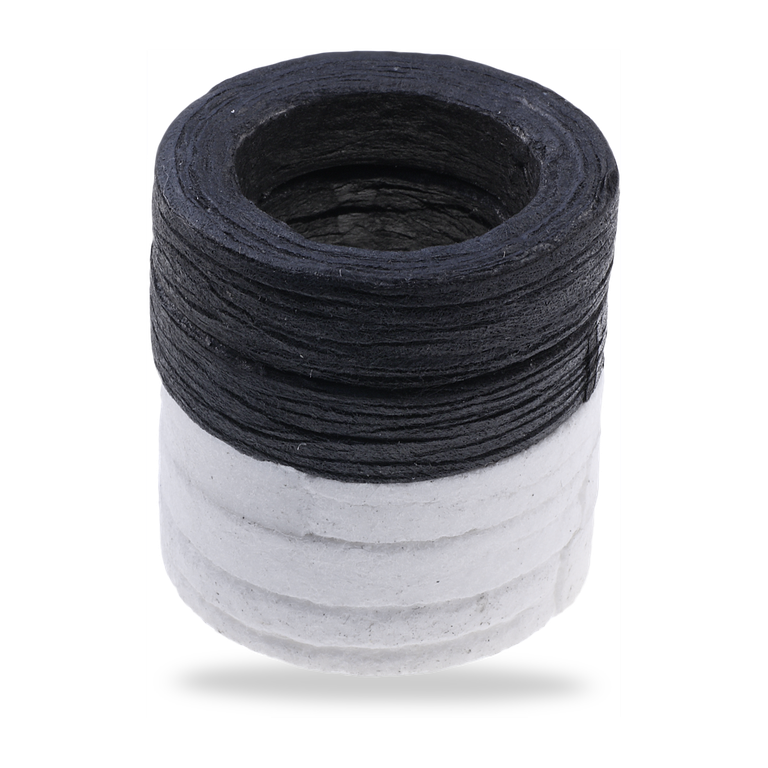

The BuraTAL T4 9650/T4 an innovative new packing set made from high quality, impregnated non-wovens. It consists of the following components:
The packing set is especially suitable in applications that demand elimination of contamination by the media and where high gas sealing performance with low friction is required.
- Two carbon fiber non-woven rings impregnated with a special PTFE/graphite compound on the atmospheric side.
- Three aramid non-woven sealing rings on the product side impregnated with PTFE to ensure very high cross-sectional stability.
The packing set is especially suitable in applications that demand elimination of contamination by the media and where high gas sealing performance with low friction is required.
Advantages
- Dimensionally stable
- High gas tightness
- Minimal friction coefficients
- Prevents contamination of the media
Standards and approvals
- TA Luft
Recommended applications
Industries
- Chemical industry
- Process industry
- Valves
Variants
9650/T4B (with Live-Loading System)
Forms of supply
- Customized packing sets made from endless or split precompressed rings
- Made to order
Similar products
BuraTAL 70 9650/70

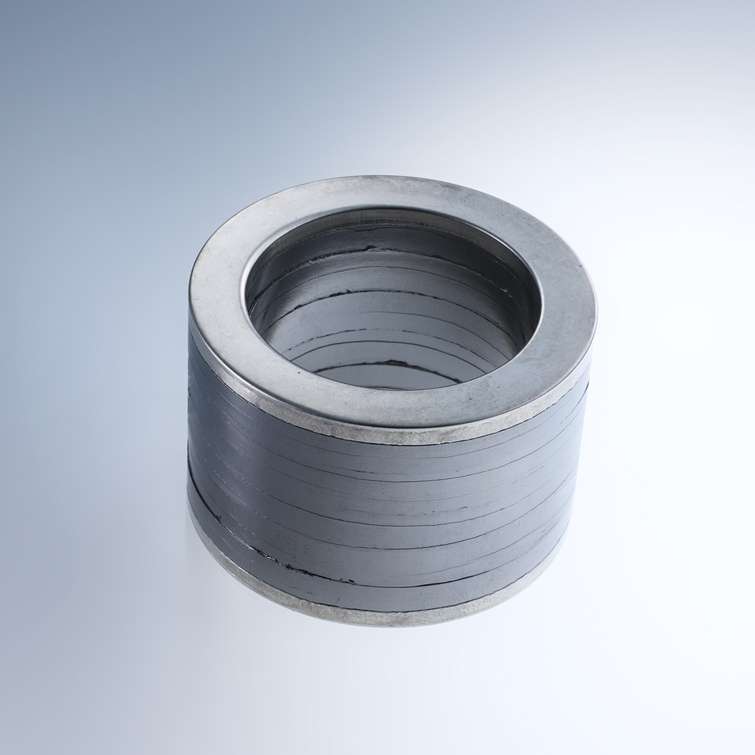

Special variation of a sealing set for valves at high temperatures.
